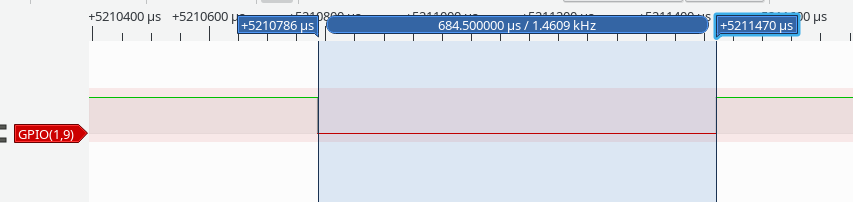

Okay, I think I've nailed the issue here. It's an related *bug* with the timer initialization. First #11146 should be a dependency of this PR to actually validate the timing. with those commits cherry-picked in, I get the following (17B total size):

![image](https://user-images.githubusercontent.com/5160052/54230438-b75daa00-4506-11e9-9336-d846a337cf42.png)

The weird thing here is that the GPIO is high->low->high, while it should be low->high->low.

#### issue:
As per API, timers are initialized running, so after initialization the `NRF802154_TIMER` is already running. So when the `timer_set` call in _send is executed, the `timer_cb` is executed `SIFS` or `LIFS` time later, clearing the GPIO. After some time, the transmission ends, setting the GPIO again. The fix is to call `timer_stop()` directly after the `timer_init()` (below the assertion check). I'll add this as an additional commit to #11146 as that PR attempts to fix all timer related issues.

--
