#### Description
When testing https://github.com/RIOT-OS/RIOT/pull/11596 we noticed, that `ethos` was unable to handle fragmented IPv6 packets. We saw them in wireshark but some fragments weren't able to be passed to the IPv6 layer. Sometimes all fragments were dropped, sometimes only the second (of two).
<!--
Example: Cannot build gnrc_networking application for samr21-xpro board.
-->

#### Steps to reproduce the issue
Remove the early exit of the `gnrc_ipv6_ext_frag` tests for non-native boards

```diff
diff --git a/tests/gnrc_ipv6_ext_frag/tests/01-run.py b/tests/gnrc_ipv6_ext_frag/tests/01-run.py
index 8fa7c1341f..87a1530db3 100755
--- a/tests/gnrc_ipv6_ext_frag/tests/01-run.py
+++ b/tests/gnrc_ipv6_ext_frag/tests/01-run.py
@@ -353,13 +353,6 @@ def testfunc(child):
         run_sock_test(test_ipv6_ext_frag_fwd_success, s)
         run_sock_test(test_ipv6_ext_frag_fwd_too_big, s)

-    if os.environ.get("BOARD", "") != "native":
-        # ethos currently can't handle the larger, rapidly sent packets by the
-        # IPv6 fragmentation of the Linux Kernel
-        print("SUCCESS")
-        print("Skipping datagram reception tests due to ethos bug.")
-        return
-
     # datagram reception tests
     res = 1
     count = 0
```

Compile and flash the application to a non-native board of your choice and run the test (I recommend to also have a wireshark running on the ethos interface during the tests)

```sh
BOARD=samr21-xpro make -C tests/gnrc_ipv6_ext_frag/ flash
sudo BOARD=samr21-xpro make -C tests/gnrc_ipv6_ext_frag/ test
```
<!--
Try to describe as precisely as possible here the steps required to reproduce
the issue. Here you can also describe your hardware configuration, the network
setup, etc.
-->

#### Expected results
The tests pass, all fragmented datagrams sent from the Linux side are received by the RIOT node.
<!--
Example: The gnrc_networking application builds on samr21-xpro.
-->

#### Actual results

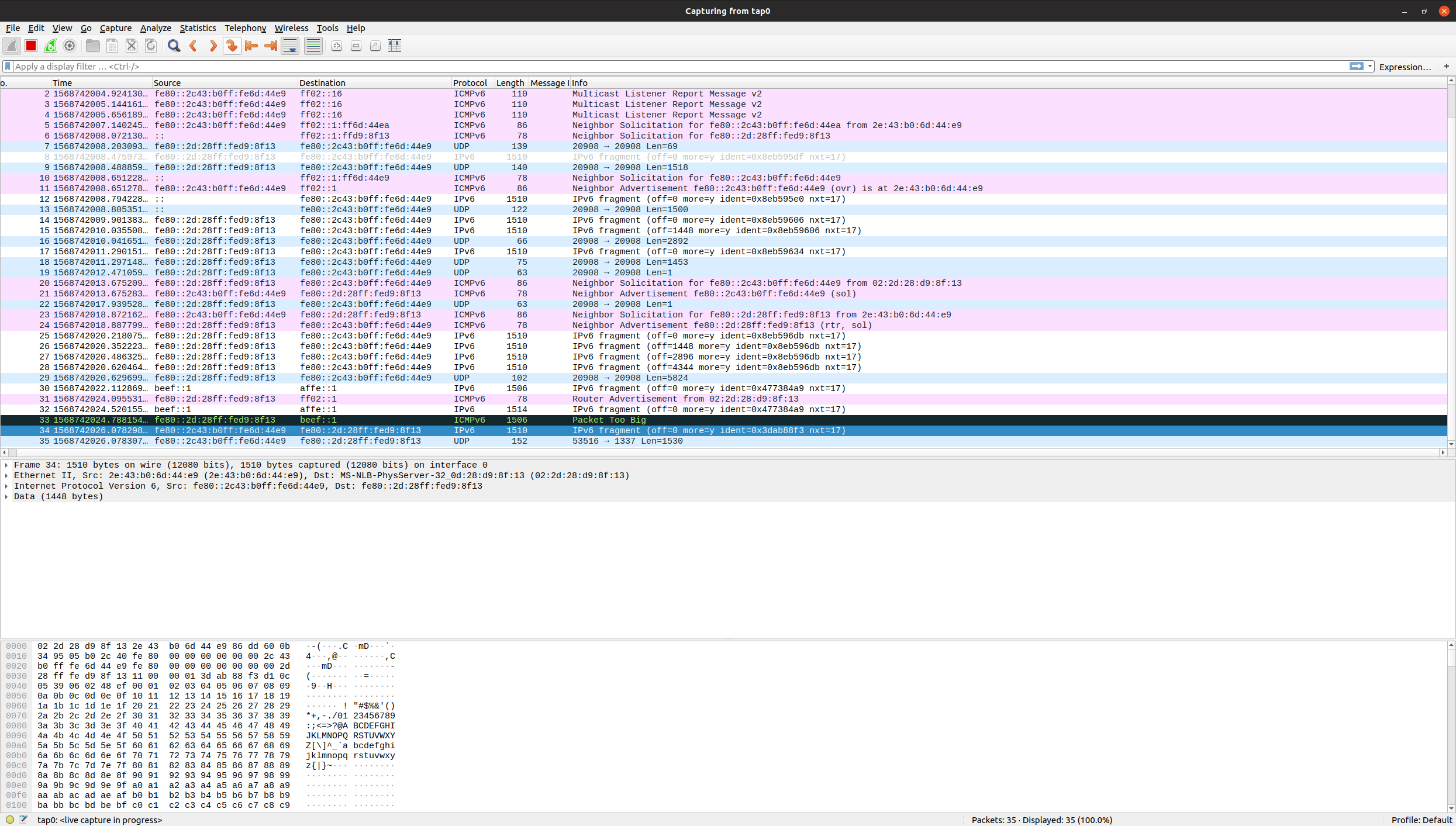

The fragmented datagrams sent by the Linux kernel are not received, as fragments get lost somewhere in the `ethos` layer. If we look into wireshark, however, we actually see a fragmented datagram going in (frames 34 and 35 in my screenshot).

![image](https://user-images.githubusercontent.com/675644/65065720-439fcc80-d983-11e9-943a-c8db5e44c4e8.png)

<!--
Please paste or specifically describe the actual output.
-->

#### Versions
Current master (5631b698db6ceade0a413e722a1c8498fb92e8a0)

```
Operating System Environment
-----------------------------
       Operating System: "Ubuntu" "19.04 (Disco Dingo)"
                 Kernel: Linux 5.0.0-27-generic x86_64 x86_64

Installed compiler toolchains
-----------------------------
             native gcc: gcc (Ubuntu 8.3.0-6ubuntu1) 8.3.0
      arm-none-eabi-gcc: arm-none-eabi-gcc (GNU Tools for Arm Embedded Processors 8-2018-q4-major) 8.2.1 20181213 (release) [gcc-8-branch revision 267074]
                avr-gcc: avr-gcc (GCC) 5.4.0
       mips-mti-elf-gcc: missing
             msp430-gcc: msp430-gcc (GCC) 4.6.3 20120301 (mspgcc LTS 20120406 unpatched)
   riscv-none-embed-gcc: missing
   xtensa-esp32-elf-gcc: missing
   xtensa-lx106-elf-gcc: missing
                  clang: clang version 8.0.0-3 (tags/RELEASE_800/final)

Installed compiler libs
-----------------------
   arm-none-eabi-newlib: "3.0.0"
    mips-mti-elf-newlib: missing
riscv-none-embed-newlib: missing
xtensa-esp32-elf-newlib: missing
xtensa-lx106-elf-newlib: missing
               avr-libc: "2.0.0" ("20150208")

Installed development tools
---------------------------
                  cmake: cmake version 3.13.4
               cppcheck: missing
                doxygen: 1.8.13
                    git: git version 2.20.1
                   make: GNU Make 4.2.1
                openocd: Open On-Chip Debugger 0.10.0+dev-00910-g4dbcb1e7 (2019-06-17-16:24)
                 python: Python 2.7.16
                python2: Python 2.7.16
                python3: Python 3.7.3
                 flake8: 3.6.0 (mccabe: 0.6.1, pycodestyle: 2.4.0, pyflakes: 2.0.0) CPython 3.7.3 on Linux
             coccinelle: missing
```
<!--
Operating system: Mac OSX, Linux, Vagrant VM
Build environment: GCC, CLang versions (you can run the following command from
the RIOT base directory: make print-versions).
-->
