@wosym The name of the branch is: 13624_candev_mcp2515
Here I have enabled all debug messages, increased the stack size of the idle
thread, added the spi reset and adapted the pin-configuration.

For pin-configuration I used the spi-pins defined in periph_conf.h for the nucleo-f207zg.

The can-bus I’m working with uses a standard can-connector like this: https://www.kvaser.com/about-can/the-can-protocol/can-connectors/

And here are some pictures (I hope everything is visible):

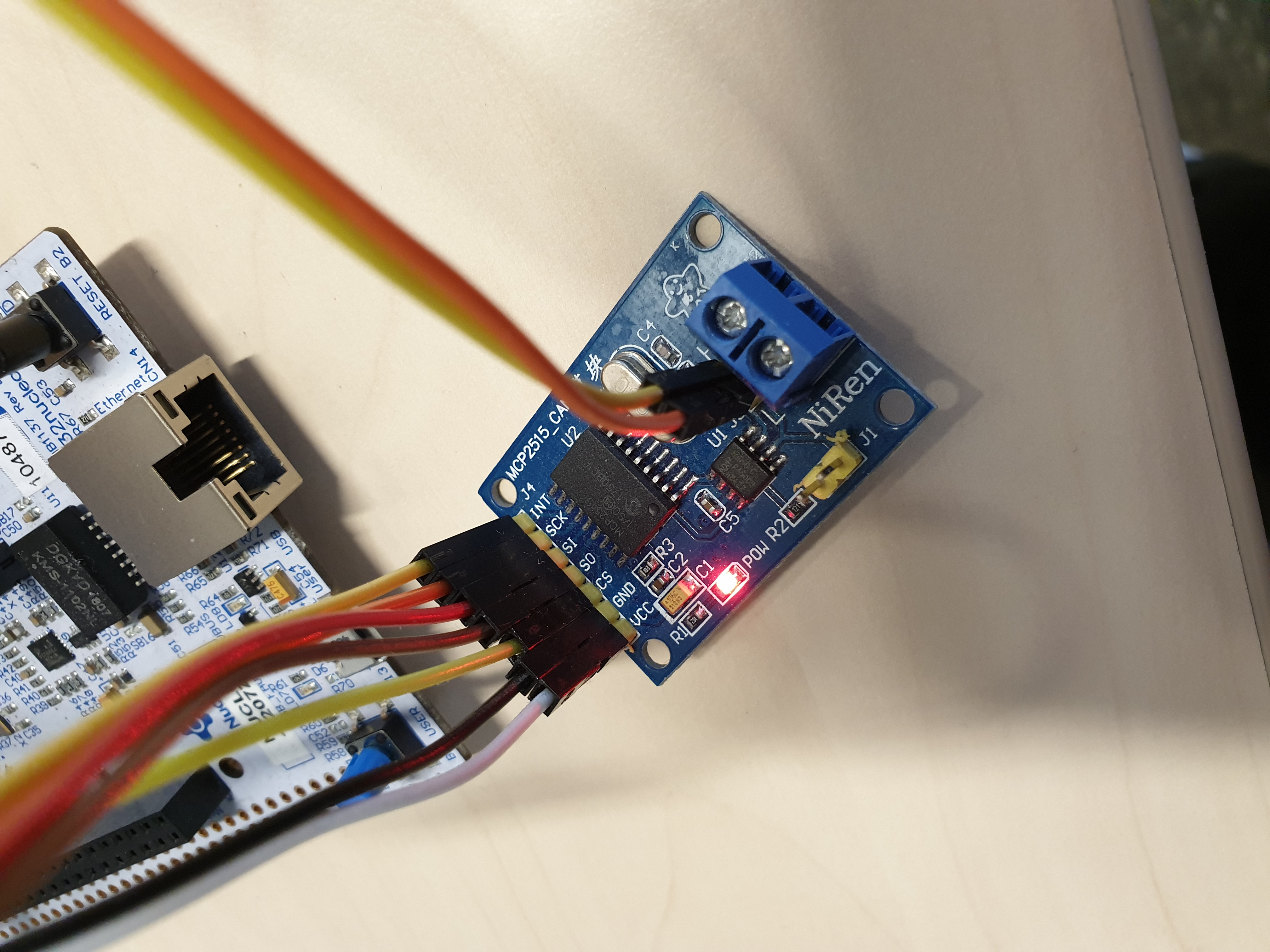

This is one side:
![03_20200513_100237](https://user-images.githubusercontent.com/27685108/81789555-7004ec00-9504-11ea-98c3-6968359c8f36.jpg)
![08_20200513_100342](https://user-images.githubusercontent.com/27685108/81789698-a2aee480-9504-11ea-8c12-a1a82edc878a.jpg)
![02_20200513_103416](https://user-images.githubusercontent.com/27685108/81790361-94ad9380-9505-11ea-8ed4-b085493abd6c.jpg)


And the other side:
![06_20200513_100326](https://user-images.githubusercontent.com/27685108/81789825-cf62fc00-9504-11ea-8415-c9e2cc319e69.jpg)
![07_20200513_100335](https://user-images.githubusercontent.com/27685108/81789863-dd188180-9504-11ea-99f1-07dabdd7ad06.jpg)
![01_20200513_103340](https://user-images.githubusercontent.com/27685108/81790379-99724780-9505-11ea-9a33-255b590f3530.jpg)




--
