### Contribution description

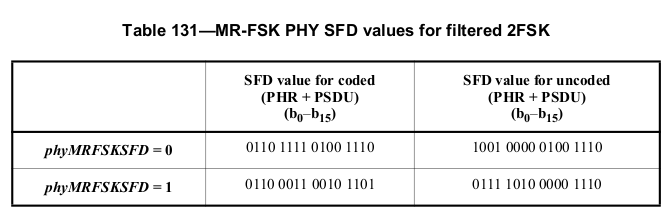

Specifies the SFD for MR-FSK on uncoded PHR + PSDU mode.

![Screenshot from 2021-01-26 21-29-36](https://user-images.githubusercontent.com/5952531/105901438-a98f7000-601d-11eb-9085-b9dde5e4a4fd.png)

Also specifies the MR-FSK phy header (PHR) length in bytes. This is _will_ be used on #13295 .

### Testing procedure

- N/A

### Issues/PRs references

- Cherry-picked from #13295 , to not mix things up on that PR which is quite large.

You can view, comment on, or merge this pull request online at:

  https://github.com/RIOT-OS/RIOT/pull/15863

-- Commit Summary --

  * ieee802154: add MR-FSK PHR length definition
  * ieee802154: add MR-FSK SFD values for 2FSK

-- File Changes --

    M sys/include/net/ieee802154.h (15)

-- Patch Links --

https://github.com/RIOT-OS/RIOT/pull/15863.patch
https://github.com/RIOT-OS/RIOT/pull/15863.diff

--
