@aabadie commented on this pull request.



> +static const adc_conf_t adc_config[] = {
+    {GPIO_PIN(PORT_A, 0), 0},
+    {GPIO_PIN(PORT_A, 1), 1},
+    {GPIO_PIN(PORT_A, 4), 4},
+    {GPIO_PIN(PORT_B, 0), 0},
+    {GPIO_PIN(PORT_C, 1), 1},
+    {GPIO_PIN(PORT_C, 0), 0},
+};

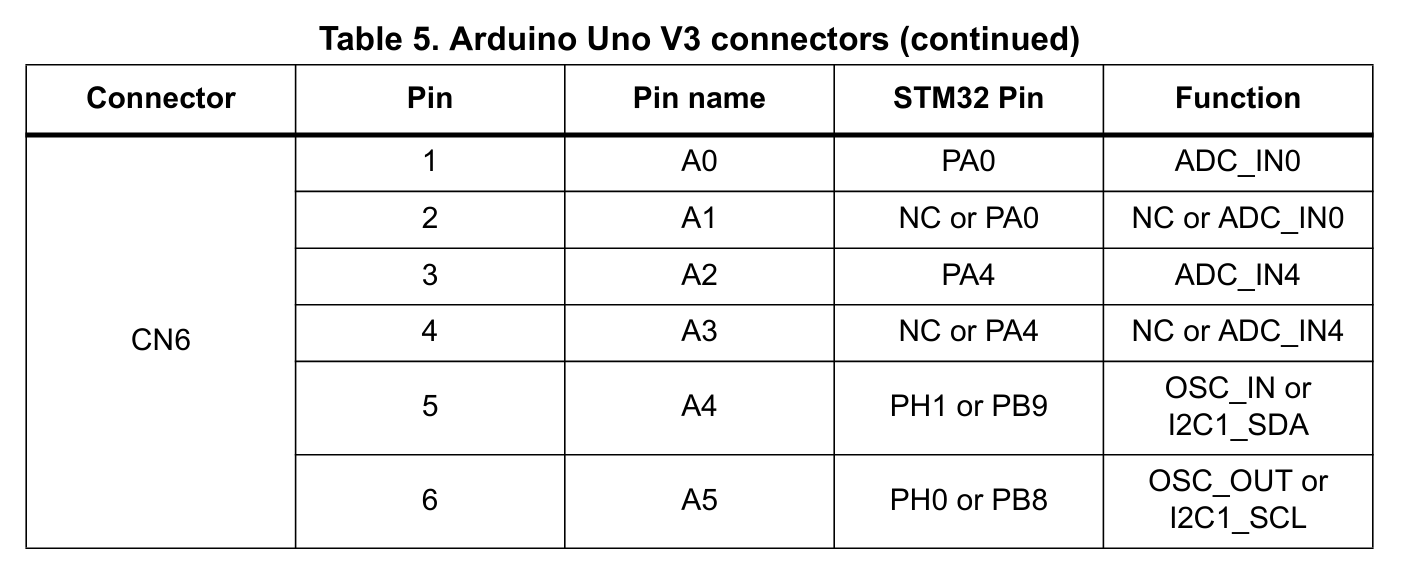

I'm comparing the pins configured with UM2115. Are you sure this is working ? Especially A1, A3-A5 ?

![image](https://user-images.githubusercontent.com/1375137/106179377-3d3a7b00-619b-11eb-9eef-31533336c77c.png)


--
